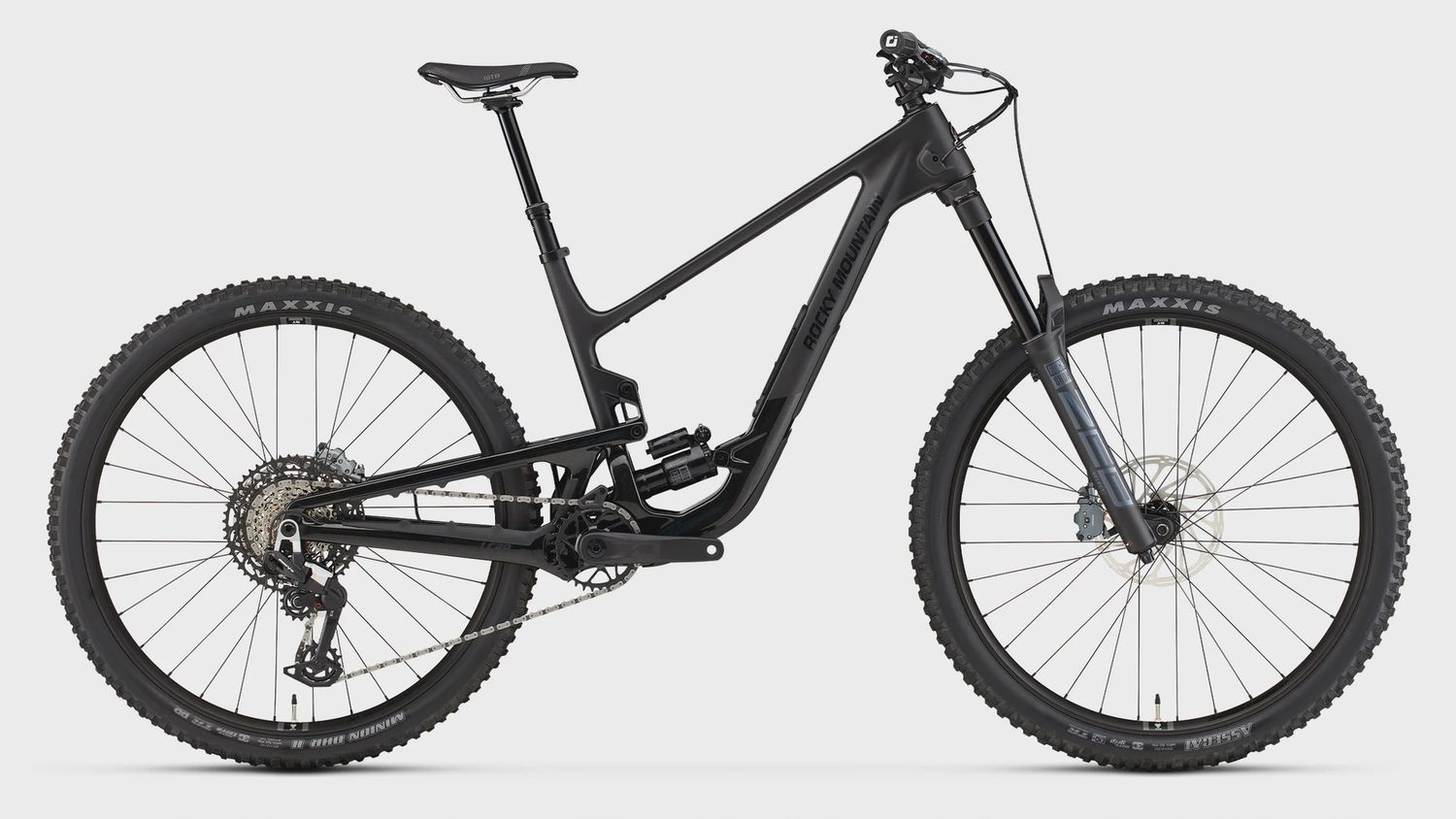

Rocky Mountain Altitude C50

Specifications

Frame

• Material: SMOOTHWALL™ Carbon
• Features: Penalty Box 2.0 Storage, Full Sealed Cartridge Bearings, Threaded BB, Internal Cable Routing, 2-Bolt ISCG05 Tabs, RIDE-4™ Adjustable Geometry
• Travel: 160mm
• Rear Triangle: SMOOTHWALL™ Carbon

Fork

• Model: RockShox Zeb Select
• Travel: 170mm
• Offset: 27.5 = 38mm, 29 = 44mm

Suspension

• Front Travel: 170mm
• Rear Travel: 160mm
• Shock: RockShox Super Deluxe Select+
  • Linear XL Air Can
  • Sealed Bearing Eyelet
  • 40x10mm F Hardware
  • Size-Specific Tune: SM = 210x55mm, MD - LG - XL = 230x60mm

Headset

• Model: FSA Orbit NO.85 Reach Adjust
• Cups: 0mm Installed, +/- 5mm Included
• Bearings: 36°x45°
• Dimensions:
  • Upper: 30.2mm x 41mm x 6.5mm
  • Lower: 40mm x 51.8mm x 8.0mm
• Crown Race: 1.5"

Cockpit

• Stem: Rocky Mountain 35 AM, 0° Rise, 40mm (All Sizes)
• Handlebar: Rocky Mountain AM, 780mm Width, 38mm Rise, 9° Backsweep, 5° Upsweep, 35 Clamp
• Grips: ODI Elite Pro Lock On

Brakes

• Model: Sram Maven Bronze Stealth 4 Piston
• Pads: Metal

Drivetrain

• Shifters: Sram Eagle 90 Transmission
• Rear Derailleur: Sram Eagle 90 Transmission
• Cranks & Chainring: Sram Eagle 70, 32T, DUB Spindle
  • Crankarm Length: SM MD = 165mm, LG - XL = 170mm
• Bottom Bracket: Sram DUB BSA 73 Wide
• Cassette: Sram XS-1270 Eagle Transmission 10-52T
• Chain: Sram Eagle 70 Transmission

Wheels

• Front Hub: Novatec D791SB Sealed Boost 15mm
• Rear Hub: DT Swiss 370 Boost 148mm, 18T Ratchet LN
• Spokes: DT Swiss Competition 2.0/1.8/2.0
• Rims: WTB ST i30 TOUGH TCS 2.0, 32H
• Tires:
  • Front: Maxxis Assegai 2.5 WT 3C MaxxGrip EXO+ Tubeless Ready
  • Rear: Maxxis Minion DHR II 2.4 WT 3C MaxxTerra DD Tubeless Ready

Seatpost and Saddle

• Seatpost: Tranz X +RAD2.0 Adjustable Dropper Post
  • 30mm Adjustment
  • Alloy MMX Lever
  • Dimensions: 30.9mm
  • Travel: SM = 150mm, MD = 170mm, LG = 200mm, XL = 230mm
• Saddle: WTB Solano Fusion Form 142, Cromoly Rails
